The RBI-400 is based on the RBI-200 design but will feature more power from larger horsepower and bigger hydraulic components.

Features Overview

134hp Diesel Power, 12V Electric Start
Hydraulic System: 2 Circuit - 55gpms, 3770psi (260bar)
Top Drive: Gear Box - Through Spindle, 2.5” Top Inlet
Rated for 350psi (optional upgrade to 750psi)
2-3/8” MJR Pin Down (other optional threading available)
Top Mount Hydraulic Breakout
Optional Auger Connection
Drill Motor: Single Speed
0-75 rpms with 3165 ft-lbs (4291Nm) of Torque
Push Down: 15,000 lbs (@100rpms)
Pull Back: 25,000 lbs (static)
Mast: 12ft Stroke
Mud Pump: Centrifugal 4” suction x 3” discharge with 13” Impeller
Up to 120psi and 400gpm
Circulation Bypass
(Other Mud Pump Options Available)
Mast Extension: Mast more than 21feet
Lifting Winch: 5900 lbs Capacity (other options available)
Outriggers: Three (3) Manual Screw Jacks with 10,000 lbs capacity each (optional Hydraulic jacks)
Approximate Weight: 14,000 lbs without any drill rods in the rod rack

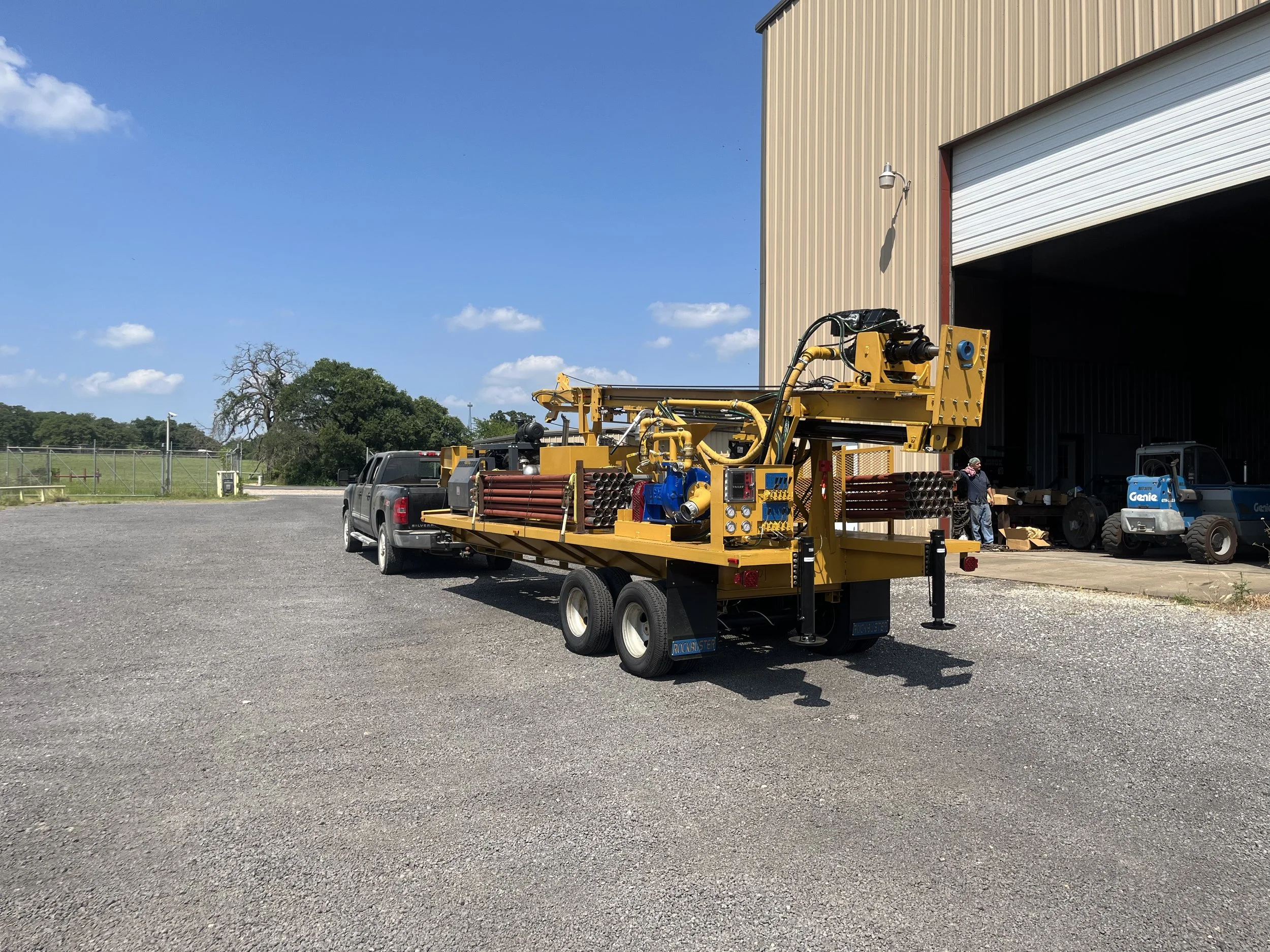

Mobility: Standard mounting is 23ft Gooseneck Trailer
Rod Rack capable of holding up to 400 feet of 2-3/8” x 10ft (3m) Drill Rod
Crawler and Truck Mounted Options Available
Price starting at $164,500 USD
